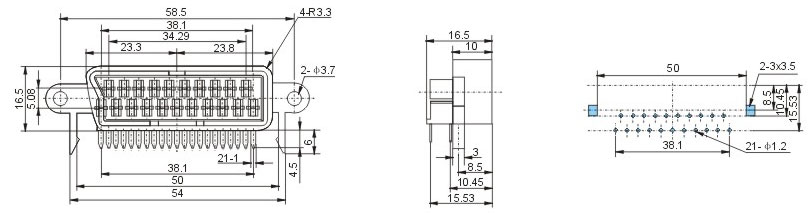

CS-101
Product parameters
Return
TECHNICAL-STANDARD
Temperature:
-25-70℃
Withstand Voltage:
DC 50V/min
Rated Load:
DC 50V 0.2A
Actuating Force:
100～300G
Contact Resistance:
≤0.02Ω
Life:
10000次
Insulation Resistance:
≥500MΩ DC500V
Prev：CS-101/PB9
Next：USB-A-06
