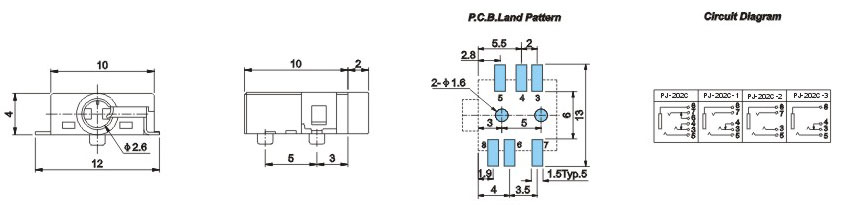

PJ-202C
Product parameters
Return
TECHNICAL-STANDARD
Temperature:
-30-70℃
Withstand Voltage:
AC 500V(50Hz)/min
Rated Load:
DC 30V 0.5A
Actuating Force:
2～20N
Contact Resistance:
≤0.03Ω
Life:
5000次
Insulation Resistance:
≥100MΩ
