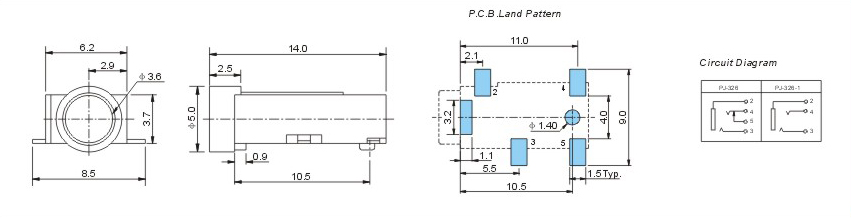

PJ-326
Product parameters
Return
TECHNICAL-STANDARD
Temperature:
-30～70℃
Withstand Voltage:
AC 500V(50HZ)/min
Rated Load:
DC 30V 0.5A
Actuating Force:
3～20N
Contact Resistance:
≤0.03Ω
Life:
5O00次
Insulation Resistance:
≥100MΩ
Prev：PJ-325
Next：PJC-001
