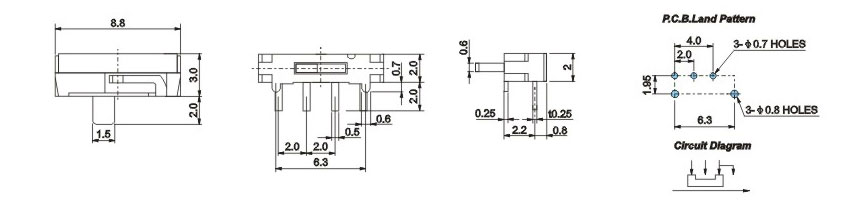

SS-1270H
Product parameters
Return
TECHNICAL-STANDARD
Rated Voltage,Current:
DC 12V 0.1A 30V 0.3A,DC 50V 0.3A 0.5A DC 60V 0.5A
Contact Resistance:
30m ohm max
Insulation Resistance:
100M ohm at 500V DC
Withstand Voltage:
AC 500V for 1 min
动作寿命:
5,000 cycle(unloeding at 15～18 cycles per minute
