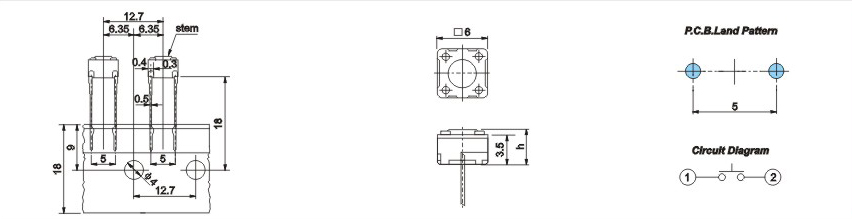

TS-1085
Product parameters
Return
TECHNICAL-STANDARD
Temperature:
-30～70℃
Withstand Voltage:
AC 250V(50HZ)/min
Rated Load:
DC 12V 0.5A
Actuating Force:
100～300G
Contact Resistance:
≤0.03Ω
Life:
1OOO00次
Insulation Resistance:
≥100MΩ
