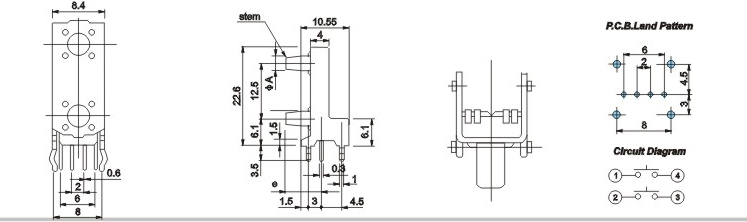

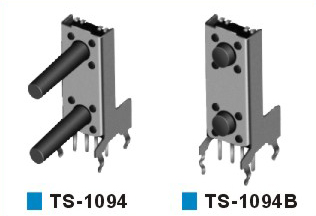

TS-1094 1094B
  TECHNICAL-STANDARD

 Temperature:  -30～70℃
 Withstand Voltage:  AC 250V(50HZ)/min
 Rated Load:  DC 12V 0.5A
 Actuating Force:  100～300G
 Contact Resistance:  ≤0.03Ω
 Life:  1OOO00次
 Insulation Resistance:  ≥100MΩ
