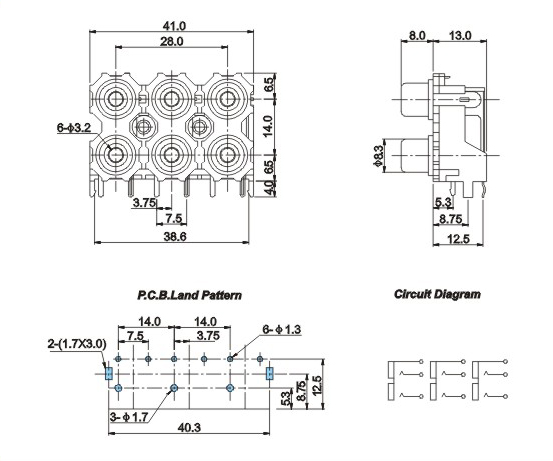

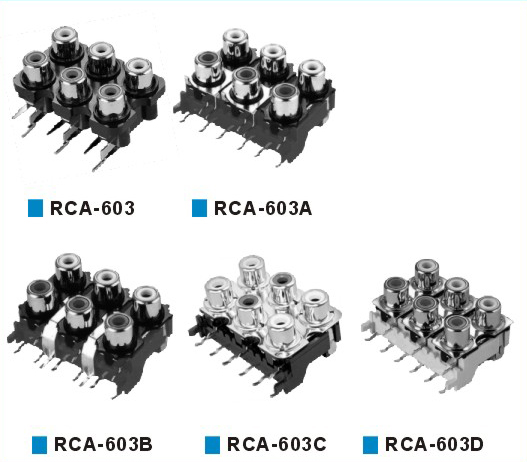

RCA-603 603A 603B 603C 603D
Product parameters
Return
TECHNICAL-STANDARD
Temperature:
-30～70℃
Withstand Voltage:
AC 500V(50HZ)/min
Rated Load:
DC 50V 0.3A
Actuating Force:
3～25N
Contact Resistance:
≤0.03Ω
Life:
5O00次
Insulation Resistance:
≥100MΩ
Prev：RCA-501 502C 503
Next：RCA-606
