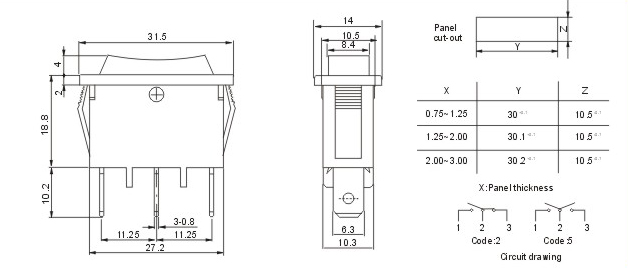

XCK-012-113
Product parameters
Return
TECHNICAL-STANDARD
Temperature:
-30～70℃
Withstand Voltage:
AC 1500V(50HZ)/min
Rated Load:
DC 250V 10A
Actuating Force:
3～20N
Contact Resistance:
≤0.03Ω
Life:
5O00次
Insulation Resistance:
≥100MΩ
Prev：XCK-012-186
Next：XCK-015-2-01
